This is the 116% version of the 90Three which makes it a fullsize 260cm wingspan kite and the overall weight is 349 gr. Similiar compared to the 90Three but much slower in tricks and performs very well in lower windspeeds, probably due to it’s size. Not recommended for use in higher windspeeds. I used c-grade Skyshark Nitro Strong (23 gram each) for the LE and LS. This (temporary) is available at Drachenmarkt (Ryll).
Colors
Please use the the colors/panel layout like the builds below. So white, light grey, dark grey and a accent color as pictured in the colorizer. The SUL has white wingtips, the STD has light grey wingtips.
Colorizer

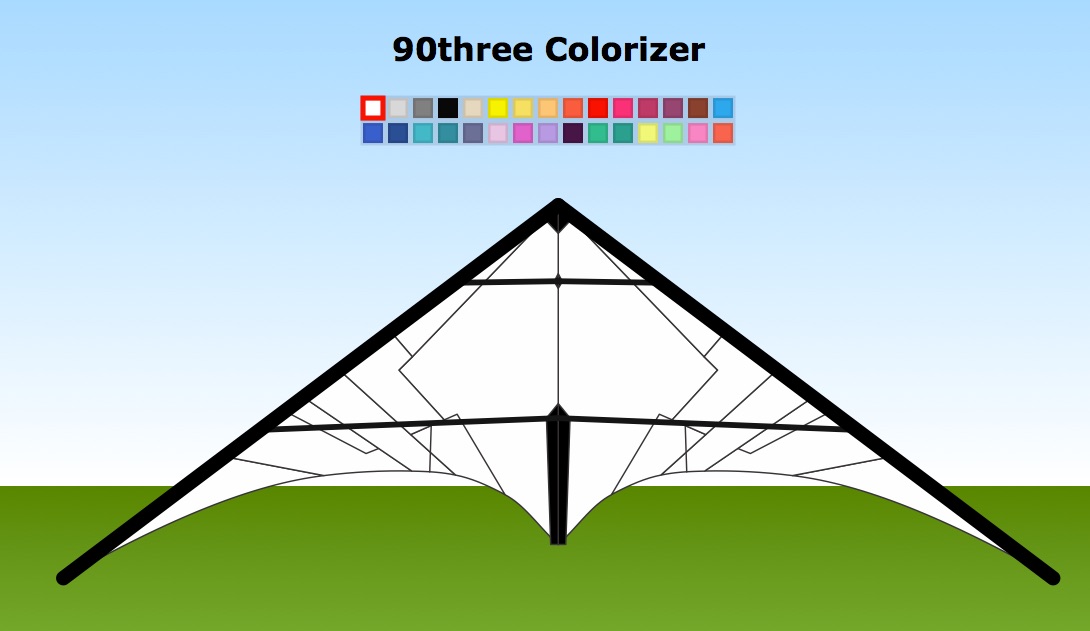

Click the picture or this link to open the colorizer in a new window.
Standard
Specs
Height: 101,5 cm
Width: 260 cm
Weight: 350 gr (incl. 20 gr tailweight)
Recommended lines: 25 – 50 kg
Frame
ULE: c-grade Nitro Strong 81 cm (10 cm p200+6mm ferrule)
LLE: c-grade Nitro Strong 81 cm
LS: c-grade Nitro Strong 78,3 cm
US: p100 51,5 cm
Spine: 5pt 82,5 cm + ferruled p200 (measure in kite)
Inner SO: 3mm glasfiber rod black 29,5 cm (rod to sail, slightly bending)
Outer SO: 3mm carbon rod black 28 cm (rod to sail)
Positions
(from nose sewing to bottom of connector)
US APA: 33,6 cm
Yoyo stopper: 61 cm
LS APA: 99,7 cm
Cross bridle-line knotted: 59,7 cm
Inner bridle point on spine: 63,7 cm
Bridle
Upper: 64 cm (above upper APA)
Outer: 57,5 cm (below lower APA)
Inner: 72,5 cm (below cross, see position above)
Keeper line: from upper to inner leg (loose in flight)
Details
Sail: Icarex PC31
LE tunnel: 5 cm dacron
TE seam: 2,5 cm ripstop
TE reinforcement: 2,5 cm dacron strip/Mylar (See blueprint for position)
Nose: Kitehouse style Bisonyl. 10 cm square folded diagonally. Cut off point on back of nose to create the spine tunnel opening.
Leechline: 50kg dyneema, with bungie at centercross. Setting is not too loose and not too tight.
Tailweight: 20 grams curtain lead (yoyo’s slow and gracefull, experiment with more weight for faster yoyo’s)
Files
Super Ultralight

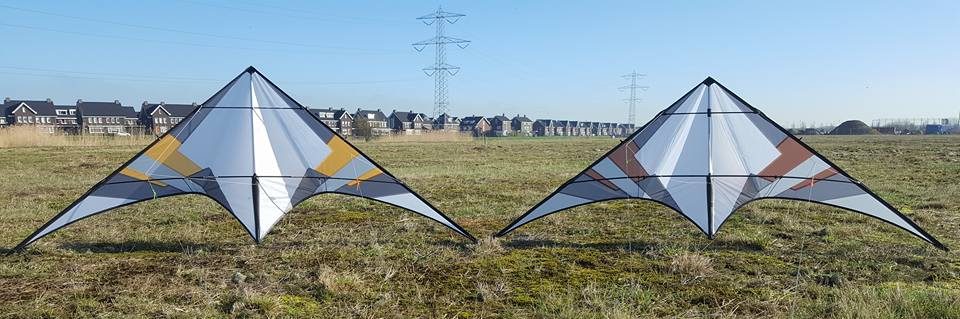

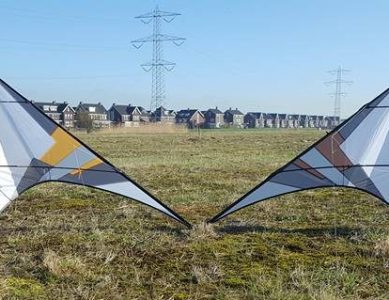

Krijn experimented by building a lighter sail (Spinnaker LE tunnels and light mylar reinforcements) and framing with lighter rods. Since the kite is big we call this the SUL. It flies and tricks in the lightest of breezes. Making it even lighter woudn’t make sense.
Specs
Height: 101,5 cm
Width: 260 cm
Weight: 260 gr (incl. 12 gr tailweight)
Recommended lines: 25 kg
Frame
ULE: Skyshark 3pt 79,5 cm
LLE: Skyshark p1x 82,5 cm
LS: Skyshark Black Diamond 3pt 78,3 cm
US: 6 mm pultruded carbon 51,5 cm
Spine: Skyshark p2x 82,5 cm + ferruled piece (measure in kite)
Inner SO: 3mm glasfiber rod black 29,5 cm (rod to sail, slightly bending)
Outer SO: 3mm carbon rod black 28 cm (rod to sail)
Positions
(from nose sewing to bottom of connector)
US TAPA: 33,6 cm
Yoyo stopper: 61 cm
LS APA: 99,7 cm
Cross bridle-line knotted: 59,7 cm
Inner bridle point on spine: 63,7 cm
Bridle
Upper: 64 cm (above upper APA)
Outer: 57,5 cm (below lower APA)
Inner: 72,5 cm (below cross, see position above)
Keeper line: from upper to inner leg (loose in flight)
